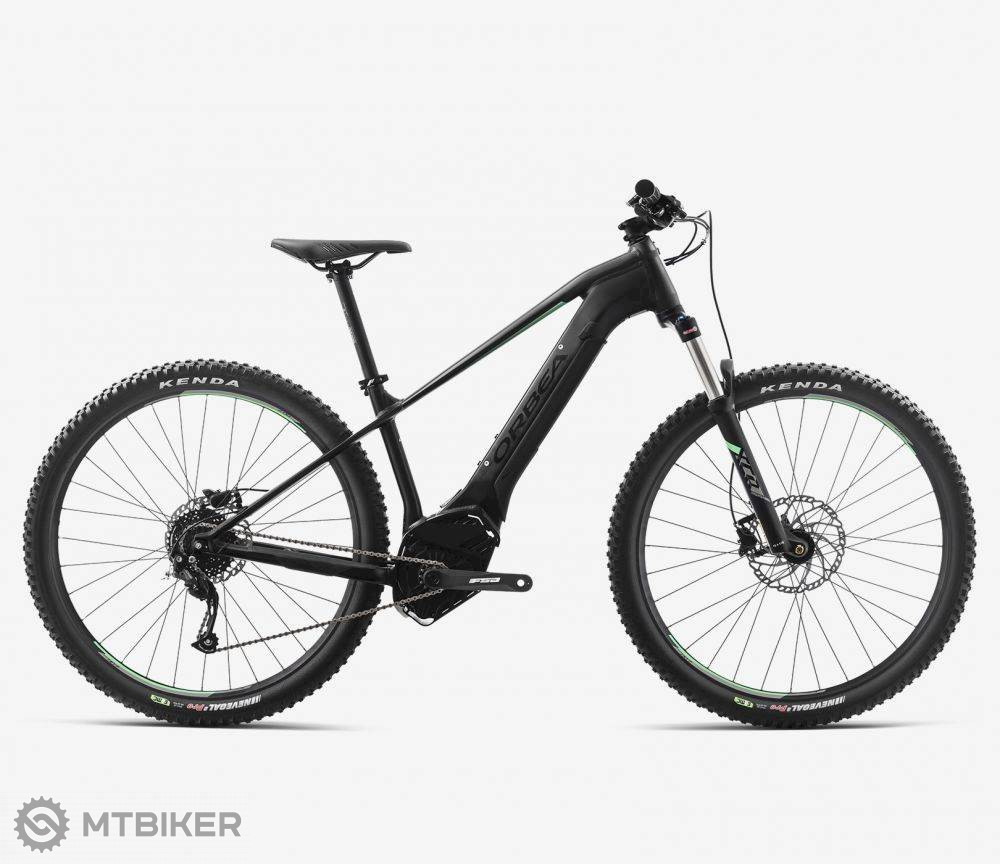

Orbea WILD HT 40 29", model 2018
Cranks FSA Bosch E-bike 14t Boost / FSA CK-745 Bosch IG2 170mm
Head assembly FSA 1-1/8 - 1-1/2" Integrated
Orbea handlebars 35mm Riser 780mm
Orbea 35mm interface stem
Shifting Shimano Altus M2000
Brakes Shimano M315 Hydraulic Disc Consult other components
Cassette Shimano HG200 11-36 9-Speed
Derailleur Shimano Altus M2000 SGS Shadow Consult other components
KMC X9eT chain
Wheels Orbea Tryp 30c Disc Tubeless ready
Tires Kenda 1184A Havok 29x2.4" 60TPI TLR (E-MTB specific)
Pedals VPE-537 Black
Seatpost Orbea OC-I 31.6x400mm Consult other components
Saddle Selle Royal 2077 DRN
Axa battery down tube lock
Engine BOSCH Performance CX 25 km/h
Battery BOSCH Performance 500Wh
Display BOSCH Performance Purion
Charging Compact Charger 2A (100-240V) Worldwide
Model year | 2018 |
Gears | 1x9 |
Groupset | Shimano Altus |
Material | aluminium |
Drive | Bosch Performance CX |
Battery | 500 Wh |
product ID | 72857 |
Road
Size | 47 | 49 | 51 | 53 | 55 | 57 | 60 |
---|---|---|---|---|---|---|---|
Rider height (cm) | 155 - 160 | 160 - 166 | 167 - 172 | 173 - 179 | 180 - 185 | 186 - 191 | 192 - 207 |
Size | XS | S | M | L | XL | XXL |
---|---|---|---|---|---|---|
Rider height (cm) | 155 - 166 | 167 - 172 | 173 - 179 | 180 - 185 | 186 - 191 | 192 - 207 |
Size | S | M | L | XL |
---|---|---|---|---|
Rider height (cm) | 155 - 170 | 165 - 180 | 179 - 190 | 185 - 198 |
Size | XS | S | M | L | XL |
---|---|---|---|---|---|
Rider height (cm) | 150 - 160 | 160 - 170 | 170 - 180 | 180 - 190 | 190 - 200 |
All bicycles at the MTBIKER shop are new, not-ridden, from an official distributor and with a full warranty. Several brands even offer a lifetime warranty on the frame after registration. We perform all warranty services in MTBIKER stores after personal delivery or after sending the bike (or its part) by courier.
- The bicycle is taken out of the manufacturer's box
- The bicycle is assembled, inspected and adjusted (front and rear derailleur, shock, fork, wheels,...)
- The bicycle is carefully packed back into a box and shipped
- If you order a bicycle for in store pick up or home delivery, the bicycle will be waiting put together, checked and ready to use for you.
- If you order a bicycle via courier to your home address, the following must be done at home:
- Take the bike out of the box and carefully remove safety material and foils
- Mount handlebar to stem (1 minute, 4 or 5 mm hex hey is needed).
- Mount front wheel to fork (1 minute, without the need of any tools if the bike has a quick release).
- Loosen the screws in the headset, straighten the stem with the front wheel, tighten the upper screw on the fork and then tighten the headset (2 minutes, 4 or 5 mm hex key is needed).
- Mount the pedals to the cranks while lubricating the thread and carefully mounting it the right way (1 minute, 8 mm hex key or 15 mm wrench).
- Mount seatpost to frame (10 seconds, without needing any tools if the frame has a quick link).
- Inflate the tyres or fork and shock to desired pressure (2 minutes, pump needed).
- Check the tightening of hex keys and quick-releases (2 minutes, 4 and 5 mm hex key is needed).
- Go for a test drive! Handle your bicycle carefully until you get used to it. If the bike has disc brakes, their performance will be limited from now on - they will gain their full power after 4-5 strong brakes at higher speed.

There are currently no reviews
