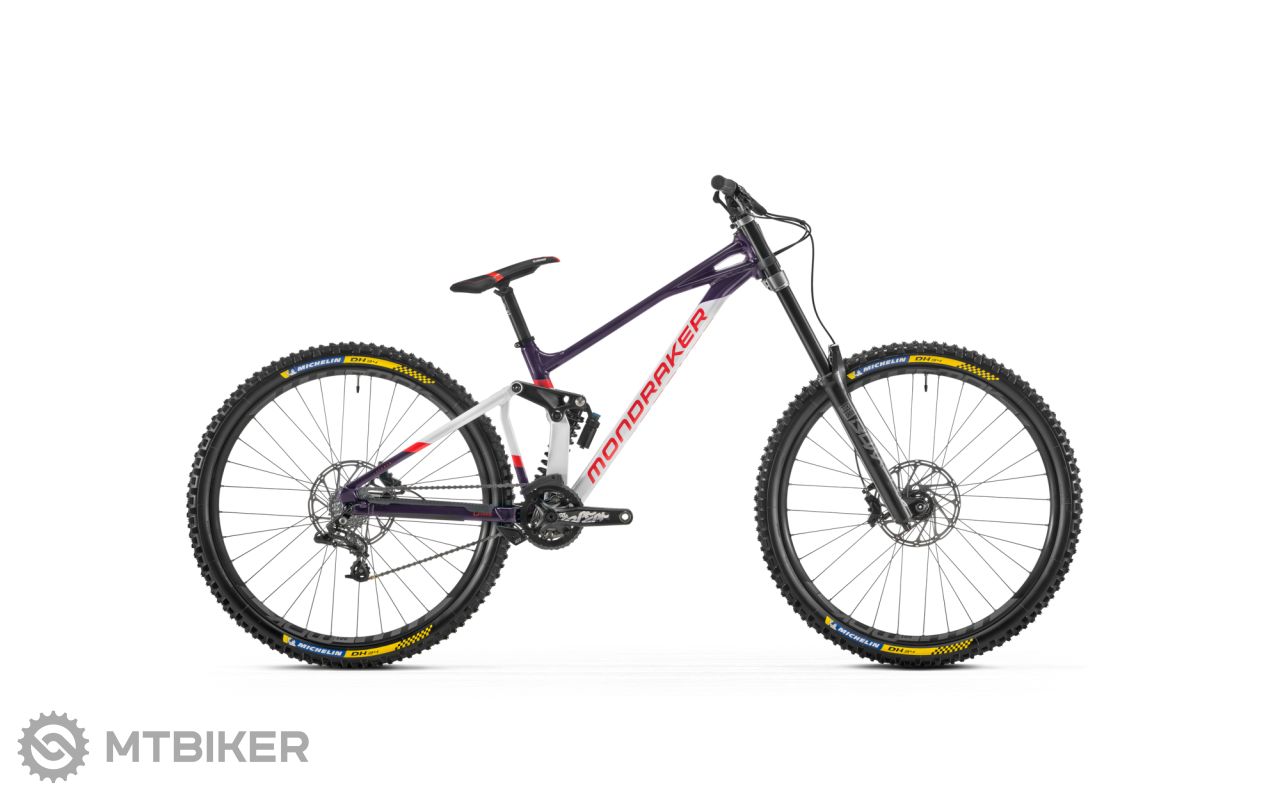

Mondraker Summum MX 29 bike, dirty white/deep purple/flame red

4,299
These goods are unavailable
heart_plusAdd it to your wishlist and we will inform You, when it will be available, or see other products in the category:
Full suspension mountain bikes Full suspension mountain bikes (Mondraker)
You can try these searches
Services available for this product
tune Bike fitting discount 50 % (you will save 70 €)  More information
build Personal pick up with assembling and warranty service for free
local_shipping Shipping or home delivery free
payment Pay in instalments  See how much you pay
Frame: Summum 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero suspension system, 200mm travel, Forward Geometry, alloy upper link with shock eyelet bearings, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, MAX. capacity dual raw Enduro bearings, HHG internal cable routing, ISCG 05. *Optional Geometry kit
Fork: Rockshox Boxxer Select RC 29, 200mm, DebonAir, 1-1/8” steerer tube, Boost 20x110mm axle, offset 56mm. Settings: low-speed compression, rebound, air preload
Head assembly: Onoff Mercurium 1.5 ZS for 1-1/8” steerer tube, 41x30.15x7x45ºx45º ACB sealed bearings, geometry kit cups, external diameter 56mm
Derailleur: Sram X7, 9s, short cage, X-actuation 1:1
Shifting: Sram trigger X5, 9s, X-actuation 1:1
Brake levers: Sram Code R, tool-free reach adjust
Cranks: Race Face Chester, alloy, 165mm
Center composition: Race Face BSA, 83mm
Handlebars: Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Stem: Onoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer
Seatpost: SDG Micro I-Beam SP-751 Alloy, diameter 31.6mm, length 300mm, micro-adjustment
Saddle: SDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura sides
Front hub: MDK DA4371B-M20, Boost 20x110mm, IS 6 bolts
Rear hub: MDK DA4352B, 12x157mm, sealed bearings, IS 6 bolts
Chain: Sram PC-951, 9s
Cassette: Sram PG-950, 11-26T, 9s
Tip: CN stainless steel
Rims: MDK-DP1 29, 27mm internal width, 32 holes
Tires: Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead
Weight: 17.9 kg
Product details
Model year 2022
Gears 1x9
Groupset SRAM X7
Material aluminium
Brakes Hydraulic disc brakes
product ID 201502

All bicycles at the MTBIKER shop are new, not-ridden, from an official distributor and with a full warranty. Several brands even offer a lifetime warranty on the frame after registration. We perform all warranty services in MTBIKER stores after personal delivery or after sending the bike (or its part) by courier.

Our bike shipment is as follows:
  1. The bicycle is taken out of the manufacturer's box
  2. The bicycle is assembled, inspected and adjusted (front and rear derailleur, shock, fork, wheels,...)
  3. The bicycle is carefully packed back into a box and shipped
  4. If you order a bicycle for in store pick up or home delivery, the bicycle will be waiting put together, checked and ready to use for you.
  5. If you order a bicycle via courier to your home address, the following must be done at home:
    1. Take the bike out of the box and carefully remove safety material and foils
    2. Mount handlebar to stem (1 minute, 4 or 5 mm hex hey is needed).
    3. Mount front wheel to fork (1 minute, without the need of any tools if the bike has a quick release).
    4. Loosen the screws in the headset, straighten the stem with the front wheel, tighten the upper screw on the fork and then tighten the headset (2 minutes, 4 or 5 mm hex key is needed).
    5. Mount the pedals to the cranks while lubricating the thread and carefully mounting it the right way (1 minute, 8 mm hex key or 15 mm wrench).
    6. Mount seatpost to frame (10 seconds, without needing any tools if the frame has a quick link).
    7. Inflate the tyres or fork and shock to desired pressure (2 minutes, pump needed).
    8. Check the tightening of hex keys and quick-releases (2 minutes, 4 and 5 mm hex key is needed).
    9. Go for a test drive! Handle your bicycle carefully until you get used to it. If the bike has disc brakes, their performance will be limited from now on - they will gain their full power after 4-5 strong brakes at higher speed.
