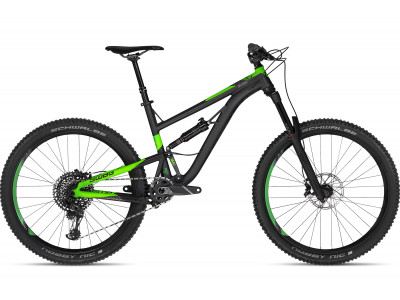

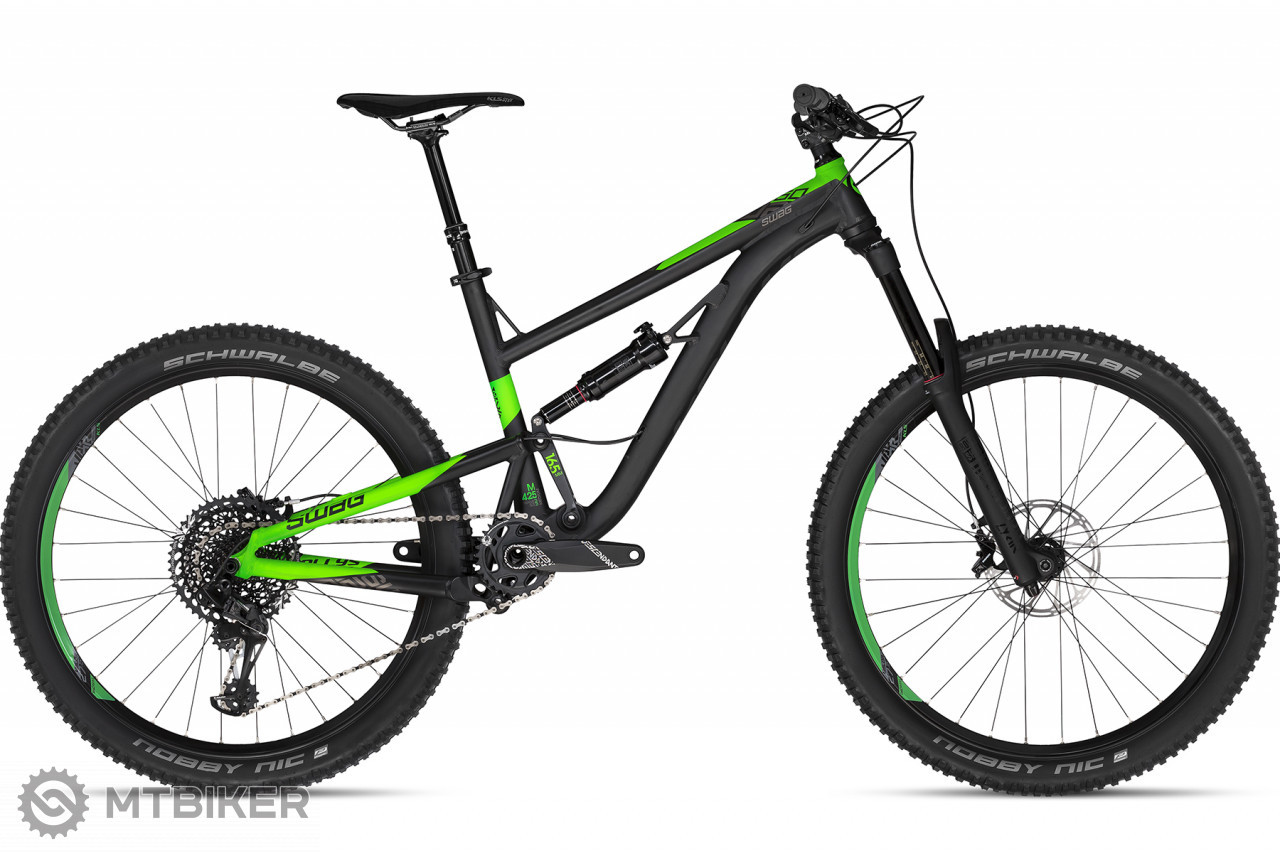

Kellys Swag 50, model 2018
frame size S / M / L
fork ROCK SHOX Lyric RC (27.5) Boost, 170mm, DebonAir / Charger 2 Damper / Maxle Stealth 15mm thru axle
rear silencer ROCK SHOX Deluxe RT3, DebonAir / Rapid Recovery / Open-Pedal-Lock (230x65mm)
main composition FSA 1.5 integrated
medium composition SRAM PressFit GXP
cranks TRUVATIV Descendant 6K 1x X-Sync (32) - length 175mm
gear SRAM GX Eagle Trigger (rear)
SRAM GX Eagle converter
number of transfers 12
cassette pinion SRAM XG-1257-12 Eagle (10-50)
chain SRAM GX Eagle (120 links)
brakes SRAM Guide R Hydraulic Disc (4-piston)
SRAM brake discs front 180mm / rear 180mm Center Lock
brake levers SRAM Guide R hubs NOVATEC Disc XD (15x110mm / 12x148mm / 32 holes
fixed axle ROCK SHOX Maxle Stealth - front 15x110mm / Mr. Control rear 12x148mm
rims KLS Valor Disc 584x23 (32 holes)
tires SCHWALBE Nobby Nic Performance 60-584 (27.5x2.35) folding
stem RACE FACE Respond - diam 28.6mm / bar bore 31.8mm / 10 ° / length 45mm
handlebars RACE FACE Respond RiseBar - diam 31.8mm / width 785mm
handles KLS Crypton LockOn
seatpost RACE FACE Affect Droper - Remote Telescopic - diam 31.6mm / length 385mm / stroke 125mm
saddle KLS Styx
pedals KLS Master - alloy
Model year | 2018 |
Gears | 1x12 |
Groupset | SRAM GX |
Material | carbon fiber |
Brakes | Hydraulic disc brakes |
product ID | 53840 |
All bicycles at the MTBIKER shop are new, not-ridden, from an official distributor and with a full warranty. Several brands even offer a lifetime warranty on the frame after registration. We perform all warranty services in MTBIKER stores after personal delivery or after sending the bike (or its part) by courier.
- The bicycle is taken out of the manufacturer's box
- The bicycle is assembled, inspected and adjusted (front and rear derailleur, shock, fork, wheels,...)
- The bicycle is carefully packed back into a box and shipped
- If you order a bicycle for in store pick up or home delivery, the bicycle will be waiting put together, checked and ready to use for you.
- If you order a bicycle via courier to your home address, the following must be done at home:
- Take the bike out of the box and carefully remove safety material and foils
- Mount handlebar to stem (1 minute, 4 or 5 mm hex hey is needed).
- Mount front wheel to fork (1 minute, without the need of any tools if the bike has a quick release).
- Loosen the screws in the headset, straighten the stem with the front wheel, tighten the upper screw on the fork and then tighten the headset (2 minutes, 4 or 5 mm hex key is needed).
- Mount the pedals to the cranks while lubricating the thread and carefully mounting it the right way (1 minute, 8 mm hex key or 15 mm wrench).
- Mount seatpost to frame (10 seconds, without needing any tools if the frame has a quick link).
- Inflate the tyres or fork and shock to desired pressure (2 minutes, pump needed).
- Check the tightening of hex keys and quick-releases (2 minutes, 4 and 5 mm hex key is needed).
- Go for a test drive! Handle your bicycle carefully until you get used to it. If the bike has disc brakes, their performance will be limited from now on - they will gain their full power after 4-5 strong brakes at higher speed.
