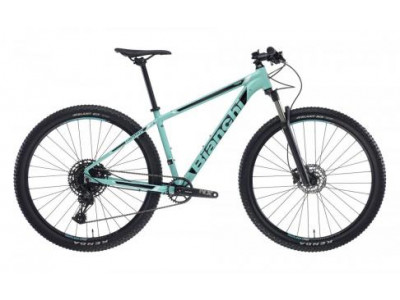

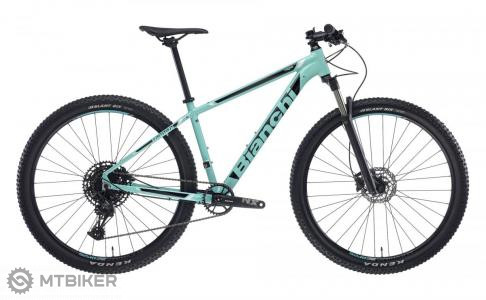

Bianchi Magma 9.S - Sram SX Eagle 1x12sp
Fork: Rock Shox Judy Silver TK 29 Solo Air, 100mm w / poplocremote left, 1.1 / 8 Alu HT, 9mm QR axle, 30mm stanchions, magnesium lowers, PM 160mm disc mount, 51mm offset
Brakes: Tektro HD-M275 Tektro TR160-35, diam. 160mm
Stem: Velomann 3D forged Alloy 6061, +/- 7 °, 1.1 / 8mm, diam.31.8mm, ext: 80mm-15/17, 90mm-19/21
Saddle: Velomann, steel rails, PVC soft touch cover, 140mm width
Seatpost : Velomann AL2014 Shaft W / Alloy head, DIAM. 27.2mm, 0mm Seatback, Length 350mm
Derailleur: Sram SX Eagle 12sp Long cage
Gearing : Sram SX Eagle 1x12sp trigger
Wheel: Tektro HD-M275 Tektro TR160-35, diam. 160mm
Hl. composition: Fsa TH888 forged steel cups ID diam.34mm, stack height12,8 + 11 = 23,8mm, w / 15mm cap
Cranks: Sram X1 1000 Eagle Dub 32T, 52mm chainline Boost Compatible, crank lenght: 170mm-15, 175mm-17/21
Chain: Sram SX Eagle 12sp
Cassette: Sram PG1210 12sp, 11-50T
Wheels: Velomann DP2.5, 622x25c, 32 holes
Rear hub: Formula CL-2241
Front hub: Formula CL-1420 for Center Lock, 32h 100mm OLD, looseballs, axle length 108mm, w / QR
Tires : Kenda Booster 29x2.20, DTC compound, 30Tpi, wire, ETRTO 56-622
Grips: T-one T-GP48B, one piece grip, TPR material, 130mm
Model year | 2022 |
Gears | 1x12 |
Groupset | SRAM X1, SRAM SX |
Material | aluminium |
Brakes | Hydraulic disc brakes |
product ID | 155698 |
Road and gravel bikes
Size | 44 cm/ XXXS | 46 cm /XXS | 50 cm/ XS | 53 cm/ S | 55 cm/ M | 57 cm/ L | 59 cm/ XL | 61 cm/ XXL | 61 cm/ XXL |
---|---|---|---|---|---|---|---|---|---|
Height (cm) | 150-155 | 155-160 | 162-167 | 167-172 | 172-178 | 178-184 | 184-188 | 188-194 | 194-200 |
Size | S | M | L | XL |
---|---|---|---|---|
Height (cm) | 152-162 | 162-172 | 172-186 | 186-195 |
All bicycles at the MTBIKER shop are new, not-ridden, from an official distributor and with a full warranty. Several brands even offer a lifetime warranty on the frame after registration. We perform all warranty services in MTBIKER stores after personal delivery or after sending the bike (or its part) by courier.
- The bicycle is taken out of the manufacturer's box
- The bicycle is assembled, inspected and adjusted (front and rear derailleur, shock, fork, wheels,...)
- The bicycle is carefully packed back into a box and shipped
- If you order a bicycle for in store pick up or home delivery, the bicycle will be waiting put together, checked and ready to use for you.
- If you order a bicycle via courier to your home address, the following must be done at home:
- Take the bike out of the box and carefully remove safety material and foils
- Mount handlebar to stem (1 minute, 4 or 5 mm hex hey is needed).
- Mount front wheel to fork (1 minute, without the need of any tools if the bike has a quick release).
- Loosen the screws in the headset, straighten the stem with the front wheel, tighten the upper screw on the fork and then tighten the headset (2 minutes, 4 or 5 mm hex key is needed).
- Mount the pedals to the cranks while lubricating the thread and carefully mounting it the right way (1 minute, 8 mm hex key or 15 mm wrench).
- Mount seatpost to frame (10 seconds, without needing any tools if the frame has a quick link).
- Inflate the tyres or fork and shock to desired pressure (2 minutes, pump needed).
- Check the tightening of hex keys and quick-releases (2 minutes, 4 and 5 mm hex key is needed).
- Go for a test drive! Handle your bicycle carefully until you get used to it. If the bike has disc brakes, their performance will be limited from now on - they will gain their full power after 4-5 strong brakes at higher speed.
