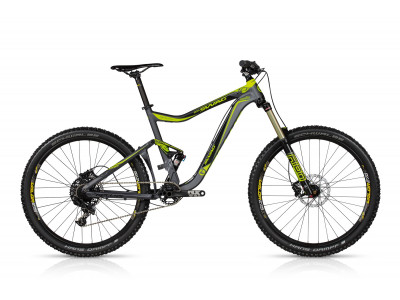

Kellys Swag 10, model 2017, gray / yellow
frame size S (17.5 ") / M (19") / L (21 ")
fork SR SUNTOUR Aion LO-R (27.5), 160mm, air / Speed Lockout / 15Q-Loc thru axle
rear silencer ROCK SHOX Monarch RT, Solo Air / Rebound / Open-Pedal (200x57mm)
main composition FSA 1.5 integrated
medium composition SRAM PressFit GXP
cranks SRAM NX 1x X-Sync (30) - length 175mm
SRAM NX 11-Speed X-Actuation Trigger (rear)
SRAM NX 1x11 X-Horizon converter
number of transfers 11
cassette pinion SRAM PG-1130-11 (11-42)
chain KMC X11 (114 links)
brakes SHIMANO M445 / 447 Hydraulic Disc
brake discs front 180mm / rear 180mm
SHIMANO BL-M445 brake levers
NOVATEC Disc hubs (15x100mm / 12x142mm / 32 holes)
fixed axle SR SUNTOUR Q-Loc front 15x100mm / Rock Shox Maxle Lite rear 12x142mm
rims KLS Valor Disc 584x23 (32 holes)
string stainless steel black
tires SCHWALBE Hans Dampf Performance 60-584 (27.5x2.35)
stem RACE FACE Chester - diam 28.6mm / bar bore 31.8mm / 8 ° / length 50mm
handlebars RACE FACE Respond RiseBar - diam 31.8mm / width 785mm
handles KLS Crypton - LockOn One
seatpost KLS Expert - diam 30.9mm / length 350mm (S), 400mm (M - L)
saddle KLS Styx
pedals KLS Master - alloy
Model year | 2017 |
Material | aluminium |
product ID | 33805 |
All bicycles at the MTBIKER shop are new, not-ridden, from an official distributor and with a full warranty. Several brands even offer a lifetime warranty on the frame after registration. We perform all warranty services in MTBIKER stores after personal delivery or after sending the bike (or its part) by courier.
- The bicycle is taken out of the manufacturer's box
- The bicycle is assembled, inspected and adjusted (front and rear derailleur, shock, fork, wheels,...)
- The bicycle is carefully packed back into a box and shipped
- If you order a bicycle for in store pick up or home delivery, the bicycle will be waiting put together, checked and ready to use for you.
- If you order a bicycle via courier to your home address, the following must be done at home:
- Take the bike out of the box and carefully remove safety material and foils
- Mount handlebar to stem (1 minute, 4 or 5 mm hex hey is needed).
- Mount front wheel to fork (1 minute, without the need of any tools if the bike has a quick release).
- Loosen the screws in the headset, straighten the stem with the front wheel, tighten the upper screw on the fork and then tighten the headset (2 minutes, 4 or 5 mm hex key is needed).
- Mount the pedals to the cranks while lubricating the thread and carefully mounting it the right way (1 minute, 8 mm hex key or 15 mm wrench).
- Mount seatpost to frame (10 seconds, without needing any tools if the frame has a quick link).
- Inflate the tyres or fork and shock to desired pressure (2 minutes, pump needed).
- Check the tightening of hex keys and quick-releases (2 minutes, 4 and 5 mm hex key is needed).
- Go for a test drive! Handle your bicycle carefully until you get used to it. If the bike has disc brakes, their performance will be limited from now on - they will gain their full power after 4-5 strong brakes at higher speed.
