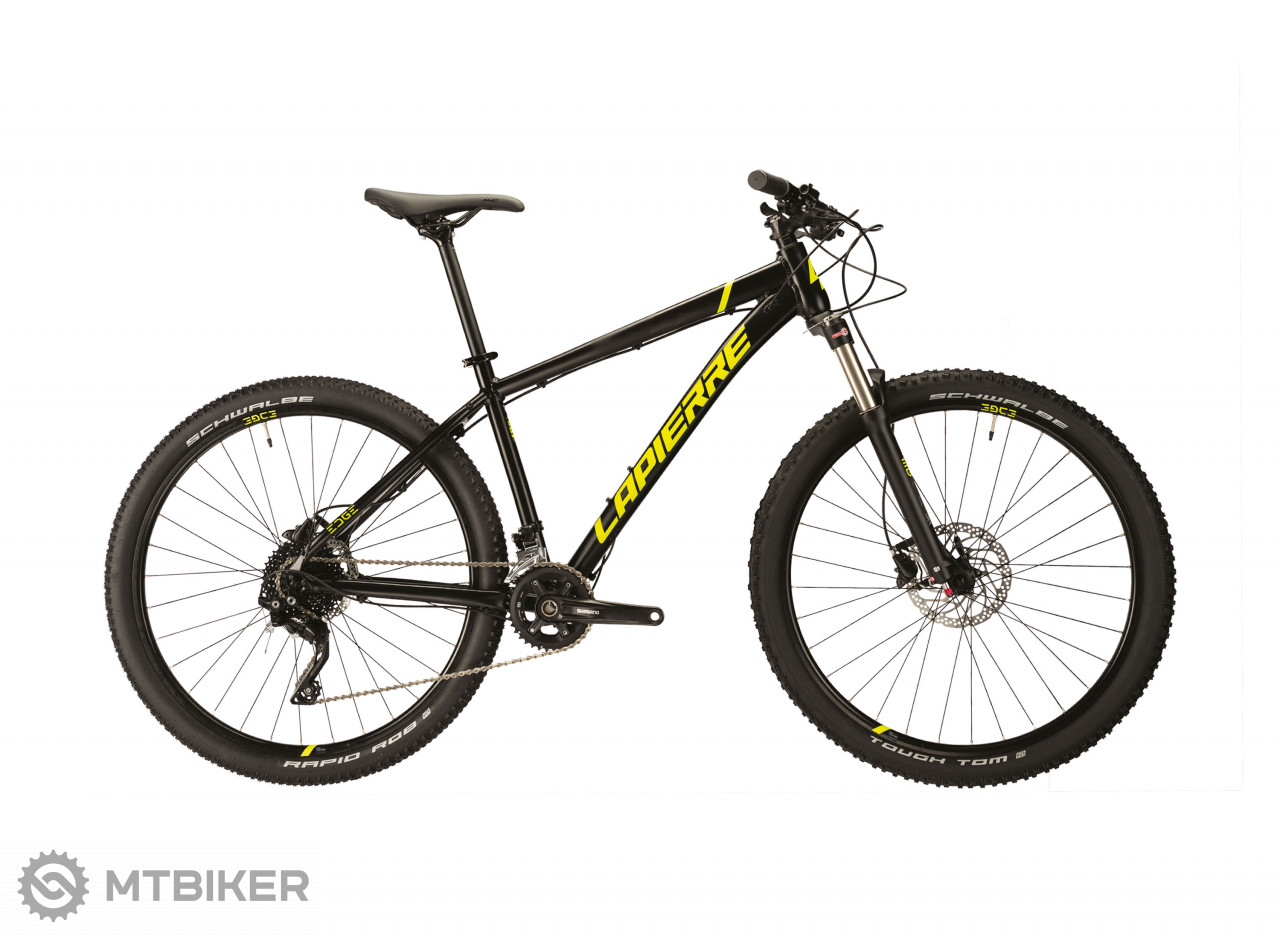

Lapierre Edge 7.7, 2020 model
Wheel size: 27.5"
Frame: EDGE 27.5 '' SUPREME 5 ALLOY DISC INTERNAL_AUTHENTICATE ROUTING
Fork: SUNTOUR XCR-RL-R-29" 100mm WITH REMOTE
Derailleur: SHIMANO DEORE RD-M781 XT, 10s SHADOW DESIGN
Cranks: SHIMANO FCMT500-2 36x26 170mm (XS, S) / 175mm (M, L, XL)
Cassette: Sunrace CSMS2 10s 11-42T
Chain: YBN 10s-SPEED
Brakes: SHIMANO MT200
Shifting: SHIMANO DEORE SLM6000 2x10-SPEED
Headstock: FSA No.10, ED 1-1/8" + XLC logo
Handlebars: XLC 6061 ALLOY W: 720mm R: 15mm Ø: 31.8mm
Grips: Lapierre by HERRMANS DD30B
Stem: XLC ALLOY 7 ° Ø: 31.8mm L: 60mm (XS, S, M, L) / 80mm (XL)
Seatpost: XLC ALLOY Ø: 27.2mm L: 350mm
Saddle: XLC by DDK
Front hub: SHIMANO HBTX505 32H CENTER LOCK
Rear hub: SHIMANO HBTX505 32H CENTER LOCK
Rims: RODI FW DOUBLE WALL 622X19C DISC Tapered Spokes
Tires: TOUGH TOM K-Guard 27.5X2.25 / RAPID ROB K-Guard 27.5X2.10
Pedals: NW 91 K steel cage
Derailleur: SHIMANO Deore 2x10S
Reels: SHIMANO SMRT30 180mm / 160mm centerlock
Model year | 2020 |
Gears | 2x10 |
Groupset | Shimano Deore |
Material | aluminium |
Brakes | Hydraulic disc brakes |
product ID | 88246 |
All bicycles at the MTBIKER shop are new, not-ridden, from an official distributor and with a full warranty. Several brands even offer a lifetime warranty on the frame after registration. We perform all warranty services in MTBIKER stores after personal delivery or after sending the bike (or its part) by courier.
- The bicycle is taken out of the manufacturer's box
- The bicycle is assembled, inspected and adjusted (front and rear derailleur, shock, fork, wheels,...)
- The bicycle is carefully packed back into a box and shipped
- If you order a bicycle for in store pick up or home delivery, the bicycle will be waiting put together, checked and ready to use for you.
- If you order a bicycle via courier to your home address, the following must be done at home:
- Take the bike out of the box and carefully remove safety material and foils
- Mount handlebar to stem (1 minute, 4 or 5 mm hex hey is needed).
- Mount front wheel to fork (1 minute, without the need of any tools if the bike has a quick release).
- Loosen the screws in the headset, straighten the stem with the front wheel, tighten the upper screw on the fork and then tighten the headset (2 minutes, 4 or 5 mm hex key is needed).
- Mount the pedals to the cranks while lubricating the thread and carefully mounting it the right way (1 minute, 8 mm hex key or 15 mm wrench).
- Mount seatpost to frame (10 seconds, without needing any tools if the frame has a quick link).
- Inflate the tyres or fork and shock to desired pressure (2 minutes, pump needed).
- Check the tightening of hex keys and quick-releases (2 minutes, 4 and 5 mm hex key is needed).
- Go for a test drive! Handle your bicycle carefully until you get used to it. If the bike has disc brakes, their performance will be limited from now on - they will gain their full power after 4-5 strong brakes at higher speed.

There are currently no reviews
