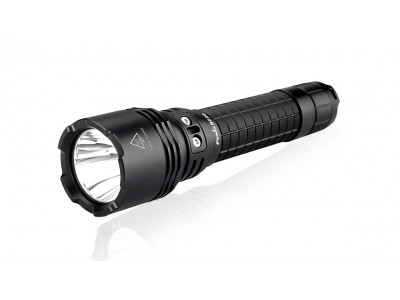

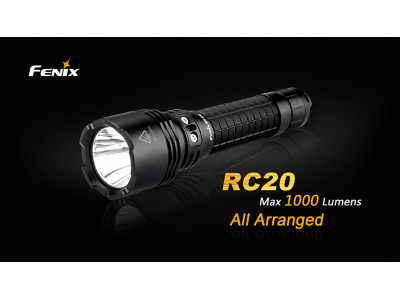

Fenix ​​RC20 rechargeable flashlight

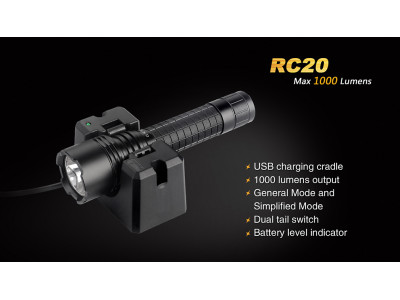

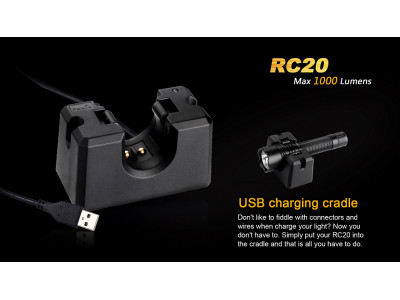

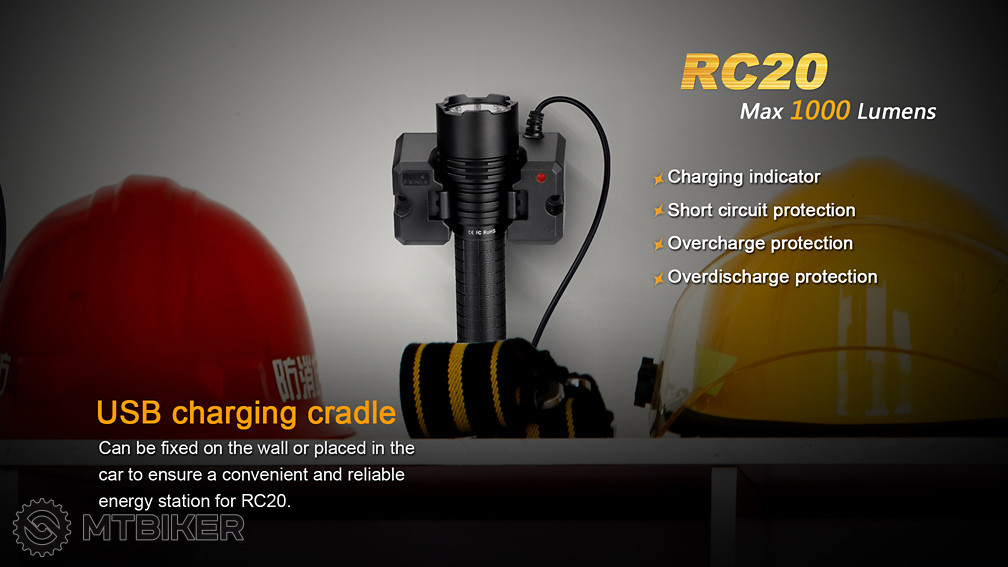

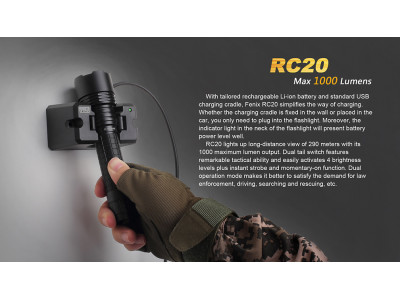

The Fenix ​​RC20 rechargeable flashlight offers a high luminous flux of up to 1000 lumens (ANSI) and an afterglow of up to 290 meters. Power is provided by an internal lithium-ion battery with a capacity of 2600 mAh, which is charged directly in the lamp using the included cradle with a USB connector, into which the lamp snaps during charging. The cradle is equipped with mounting holes, so it can be screwed to the wall, for example. Spare ARB-L1 batteries can also be purchased for the lamp.

The Fenix ​​RC20 has a total of five lighting modes (including a strobe) with a battery life of up to 120 hours. It uses a dual tactical switch for control, which enables faster and more reliable control in crisis situations. For example, it can be easily switched directly to stroboscopic mode. The lamp is powered by a digitally controlled constant current to guarantee a constant light output even during battery discharge. The very solid and waterproof design predestines this rechargeable lamp for harsh outdoor conditions, for the police, firemen, rescuers and armed forces.

All lamp parameters (luminous flux, battery operation time, waterproofing, afterglow and impact resistance) are measured in accordance with the ANSI/NEMA FL 1-2009 standard.

Fenix ​​RC20 flashlight parameters:

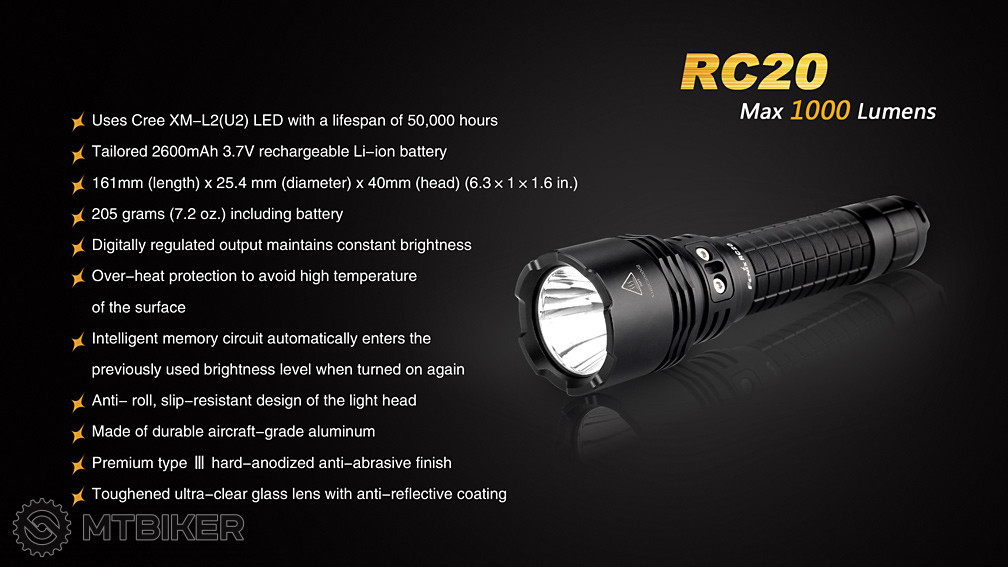

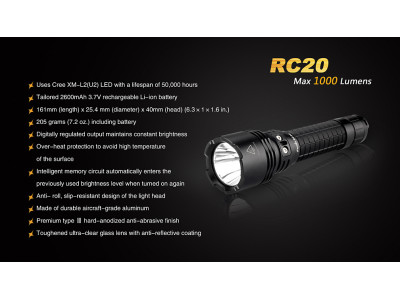

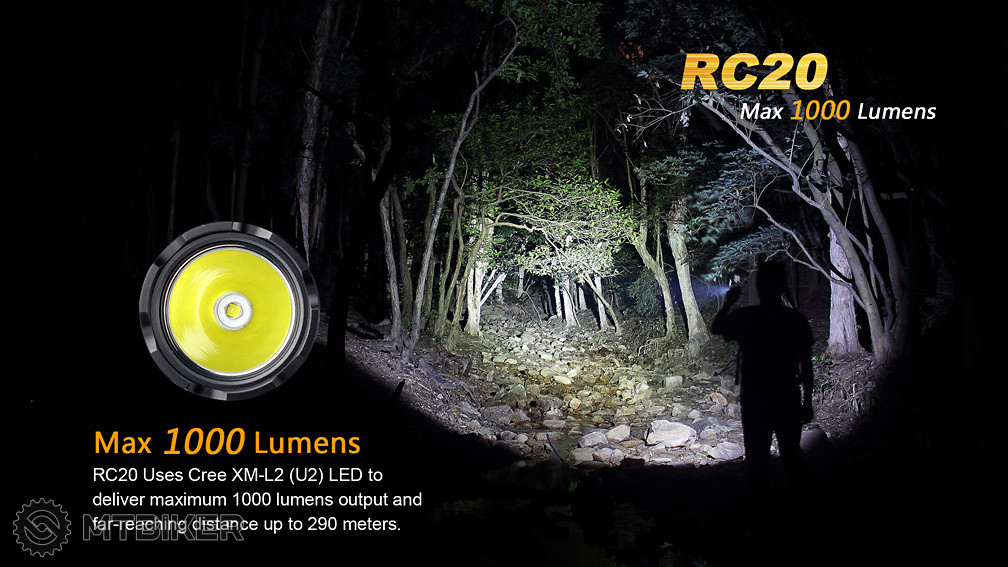

• A top-of-the-line Cree XM-L2 U2 LED with a lifespan of 50,000 hours is used.

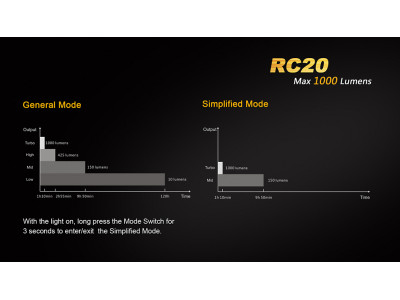

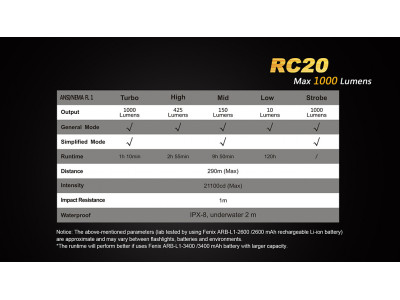

• Five power modes: 1000 lumens (1.15 hours) -> 425 lumens (3 hours) -> 150 lumens (9.9 hours) -> 10 lumens (120 hours) -> strobe 1000 lumens (strobe flashing).

• Smooth aluminum reflector for a perfect light cone with an afterglow of 290 meters (21100 cd).

• Electronics with digital constant power regulation and battery charge status indication.

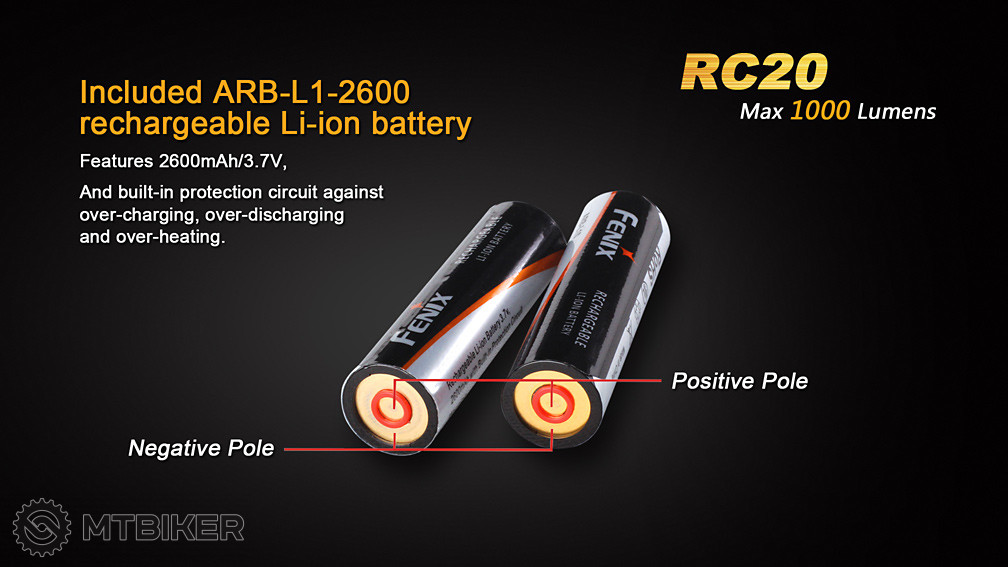

• Power supply 1x rechargeable li-ion battery ARB-L1 with a capacity of 2600 mAh. The battery is equipped with protective electronics that prevent overcharging, deep discharge and short circuit. It can be inserted into the lamp in both directions!

• Charging a fully discharged battery takes approximately 3 hours.

• Dimensions 16.1 cm (length) x 4.0 cm (head diameter) x 2.54 cm (body diameter).

• Made of aircraft hardened aluminum. Impact-resistant from a fall from a height of 1 meter.

• The lamp has a memory and will always turn on in the last set mode (does not apply to flash modes).

• Protection against overheating - if the temperature of the lamp rises above 65°C, it will automatically reduce the output.

• Trapezoidal threads highly resistant to wear.

• Durable hard-to-scratch surface - Type III hard anodized. Weight 205 grams (including battery).

• Waterproof according to the IPX-8 standard (tested under water at a depth of 2 meters).

• Hardened ultra clear glass lens with anti-reflective coating.

• The lamp does not slip in the hand thanks to the significant indentation of the surface.

• The package includes a charging cradle with a USB connector, a USB mains adapter, a belt pouch, a hand loop, a spare o-ring and an internal battery.

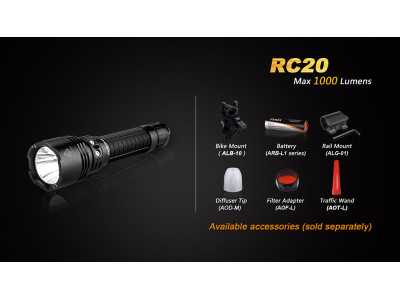

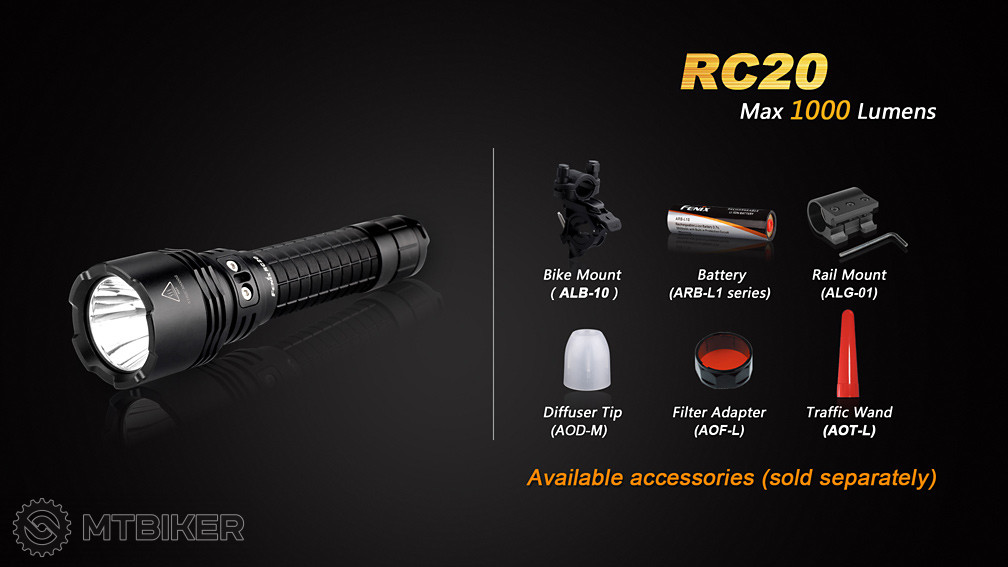

• Optional accessories can be purchased: red filter, green filter, blue filter, white diffuser AOD-M, red traffic cone AOT-L and cone AOT-02.

• The following accessories are also compatible with the light: bike mount, Fenix ​​bike mount, weapon rail mounts ALG-00 and ALG-01, side mount, barrel mount, quick release mount, magnetic barrel mount, plastic magnetic mount, light mount for optics, metal mount for optics, rotating case ALC-01 and case APL-MT.

The use:

From the factory, there may be black insulating caps on both ends of the accumulator. Remove them from the battery before first use.

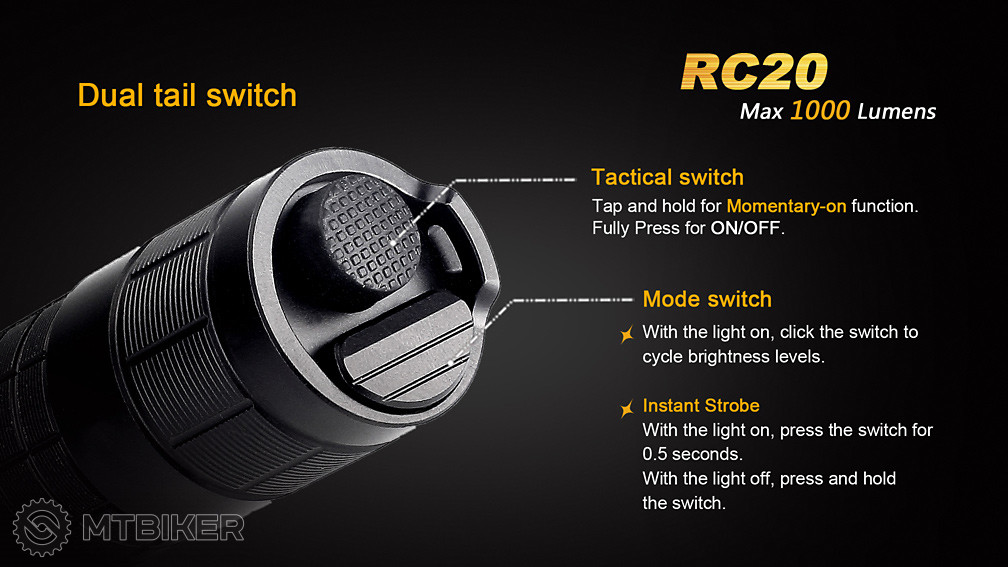

To turn it on, press the larger button located at the end of the lamp, for immediate activation, hold the button. By pressing the secondary toggle button, you can switch between power modes at any time during operation. To switch to flash mode when the light is on, hold down the switch button for about 0.5 seconds. Press and hold the toggle button to turn the light directly into strobe mode.

To switch to simplified mode, hold the switch button for 3 seconds while the lamp is on. The number of available modes will be limited to 1000, 150 lumens and strobe. To return to normal mode, hold the button again for 3 seconds.

Indication of the state of charge - there is an indicator diode between the charging connectors. With the lamp off, press the switch button, if the indicator diode lights up green, the battery is sufficiently charged. If it lights up red, or even flashes red, it is advisable to charge it as soon as possible.

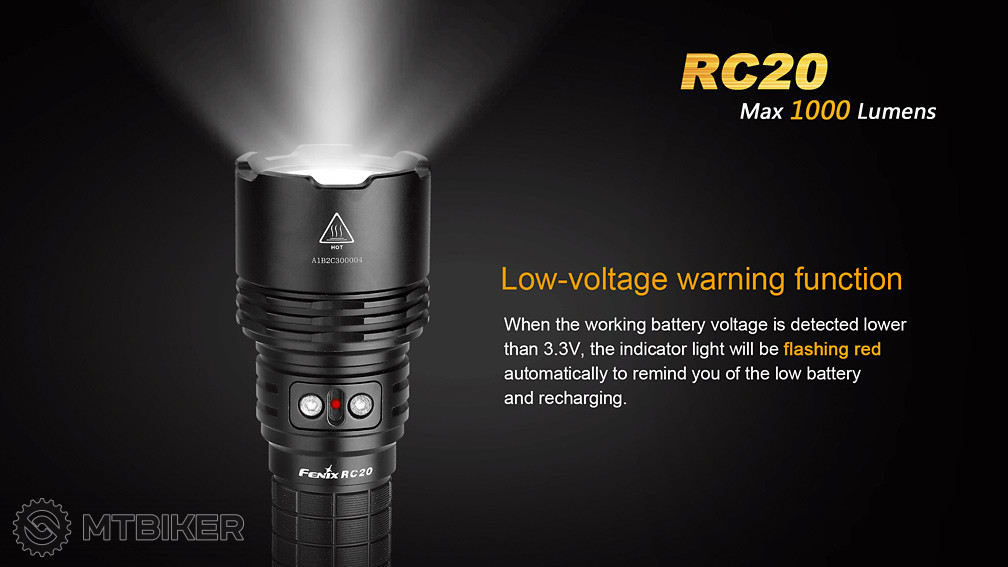

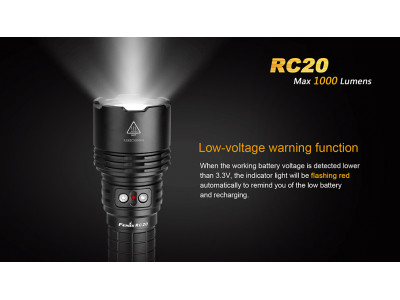

Attention to the discharged battery - when the battery is discharged below 3.3 V, the indicator diode between the charging contacts starts to glow red permanently. At the same time, the lamp will gradually switch to lower power modes, and in the lowest mode, it will flash 3 times every 5 minutes.

Notice:

• The battery does not have a memory effect, it can be charged at any time, even after each short use.

• For long-term storage, we recommend charging the flashlight every 4 months so that the battery is fully charged and ready for immediate use.

• If the lamp flashes, does not switch to higher modes, or does not light up, it may be for one of the following reasons:

  • The battery is dead, charge it.

  • The back part of the lamp is loose, tighten it.

Warranty:

Five-year warranty for the lamp, two-year warranty for the battery and charger.

Aftersight: 290m
Output: 1000lm
Max endurance: 120 hours
Number of modes: 5
Weight: 205g
Power supply: Internal accumulator
Power supply: USB charging
Light source: Cree XM-L2
Waterproof: IPX8 (immersion 2 m)
