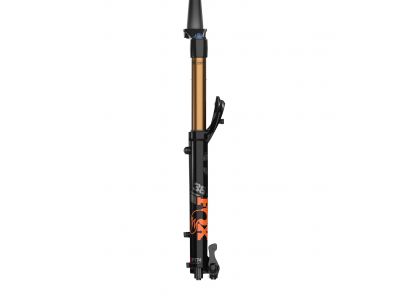

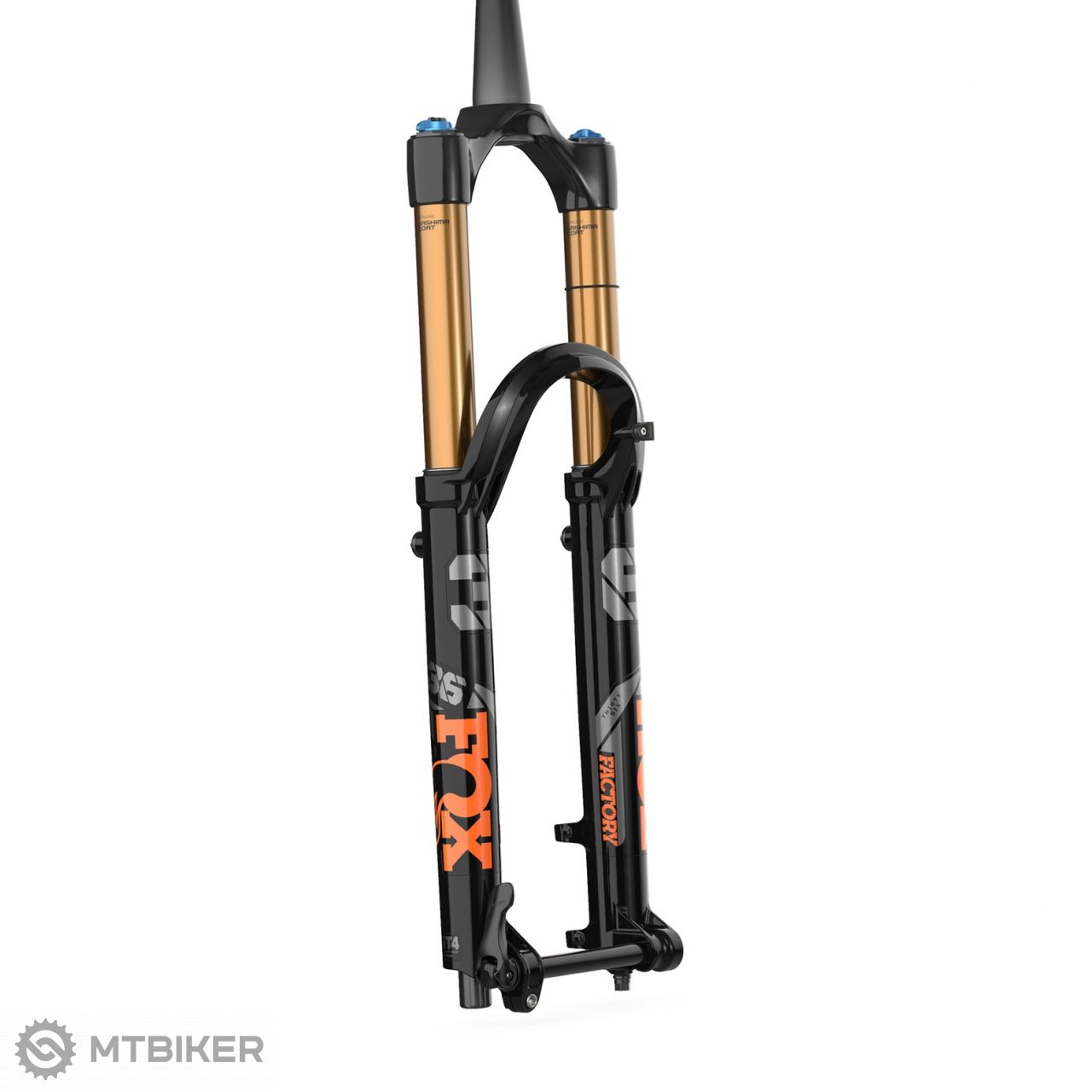

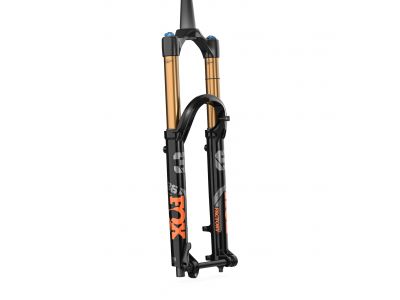

FOX fork 36 Factory Fit4 29" 150mm 2023
-5% FOX 34 Factory GripX 29" Suspension Fork, 140mm, Gloss Black
1,229 €
-5%
RRP 1,299 €
Enduro specialist with a stroke of 160mm! For model year 2023, FOX comes with redesigned FOX 36 forks, which bring a number of new technologies as well as improvements to existing technologies. Among the hidden innovations is that the inner shape of the fork post is oval, which increases rigidity without much weight gain. So far, only FOX 38 forks have had this technology. The "Factory" label speaks for itself. The best technologies that FOX has to offer are available in Factory Series models, including our ultra-durable original Kashima Coat finish, which ensures that the fork runs smoothly.
SPECIFICATION:
Destination: Trail / All-mountain / Enduro
Stroke: 150mm
Wheel size: 29 "
Inner leg diameter: 36mm
Inner leg adjustment: Kashima
Suspension: EVOL Air Spring 2021
Damping: FIT4, 3-position control on the fork crown (Open-Medium-Firm)
Offset: 44mm
Fork post: tapered 1-1 / 8 "- 1,5"
Axle: floating QR thru-axle Boost 15x110mm
Color: glossy black
Other: possibility to mount the original fender FOX 36/38
TECHNOLOGIES:

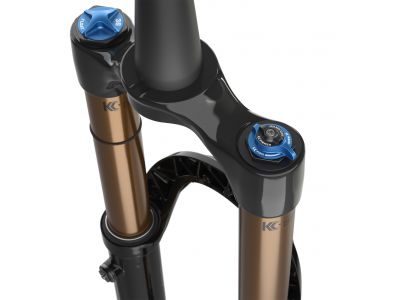

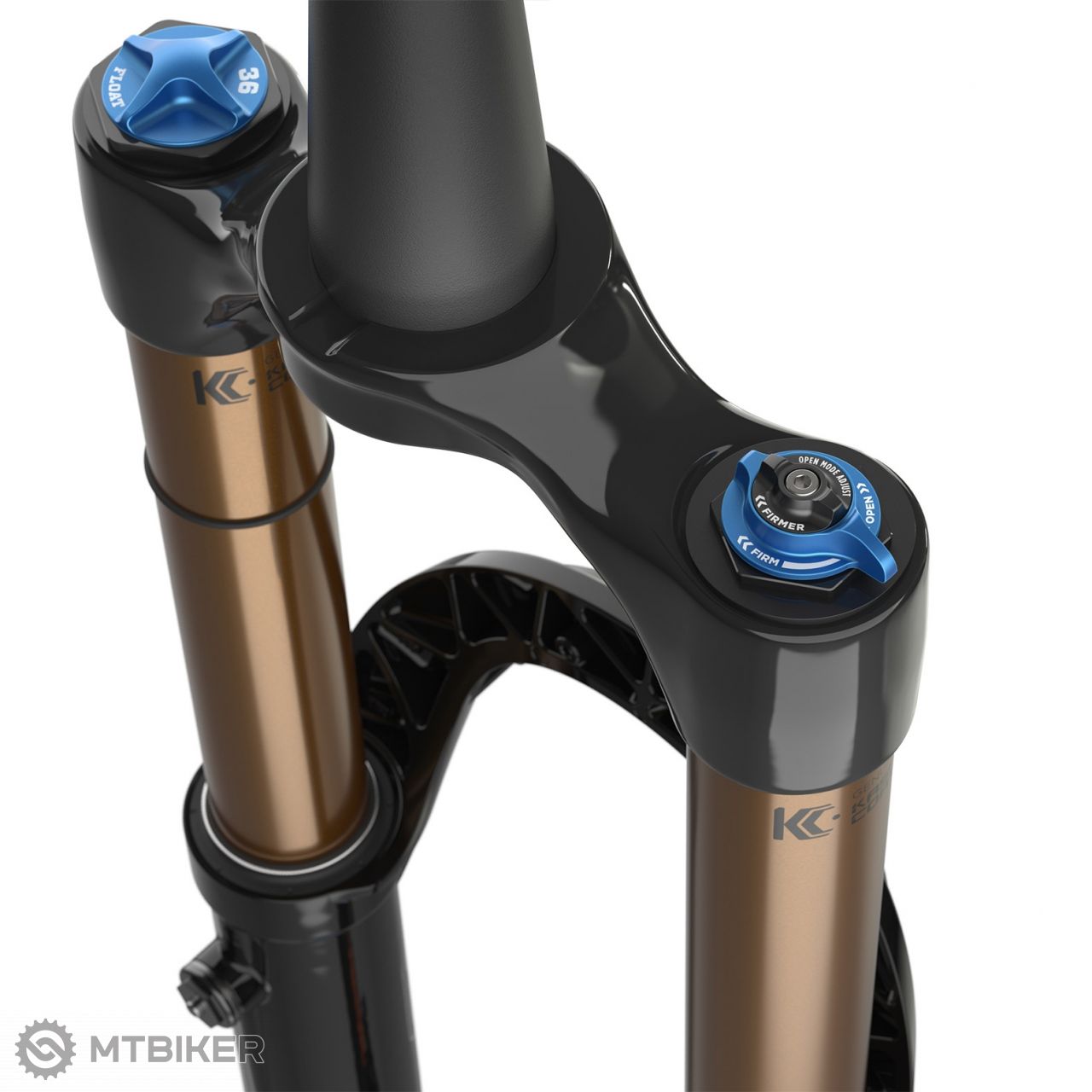

FIT damping: The fourth generation of the patented FIT closed cartridge allows you to adjust the compression on the crown in three positions (Open, Medium, Closed) while driving for the best possible adjustment of the damping to the driving conditions. In addition, the top of the Factory Series forks have the ability to fine-tune the open position (within 22 clicks) so that each rider can adjust the compression to their own preferences.
Float: The lightweight FLOAT air suspension system automatically balances the positive and negative air chambers to increase sensitivity and traction regardless of air pressure settings. Riders can fine-tune the properties of the positive air spring using Volume Air inserts.

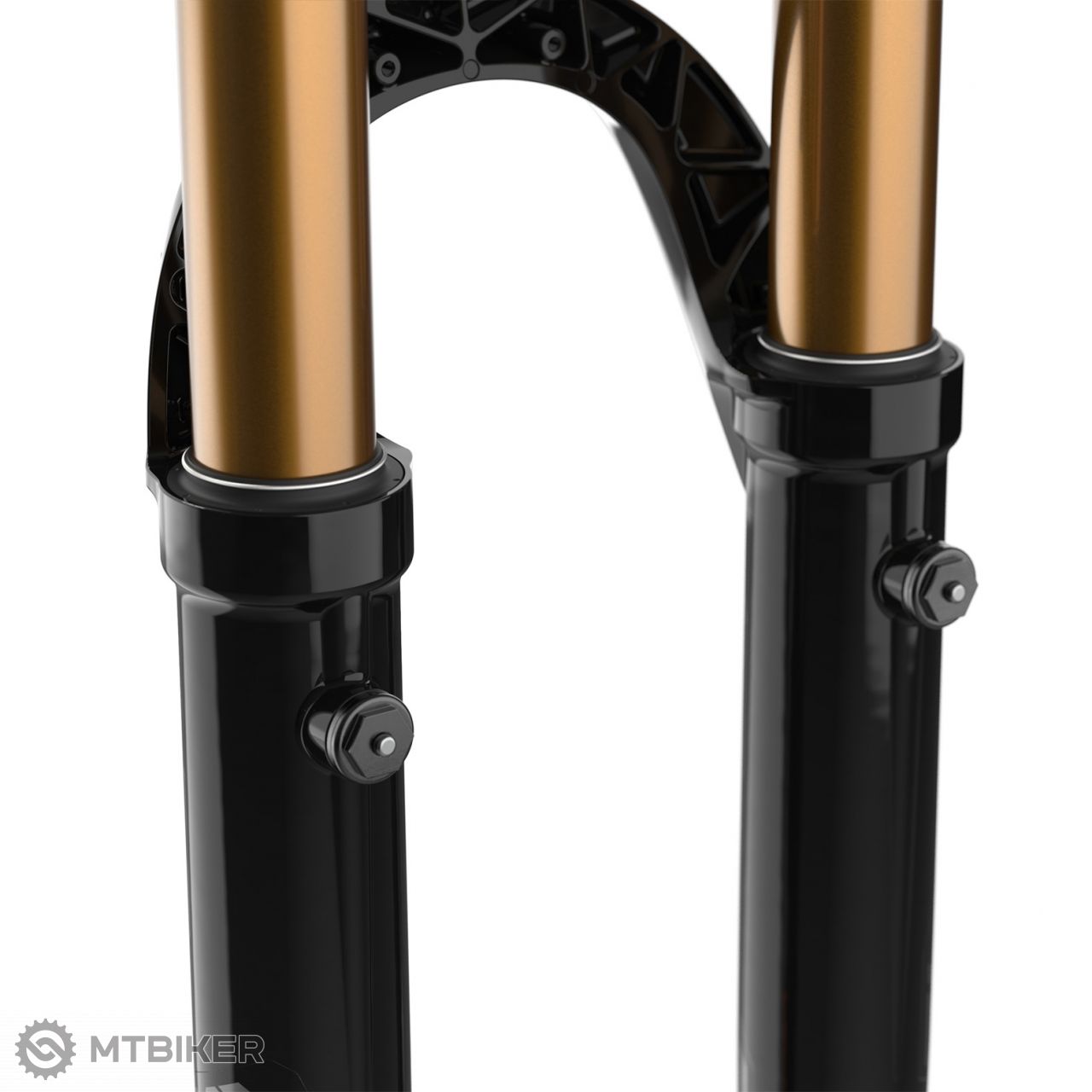

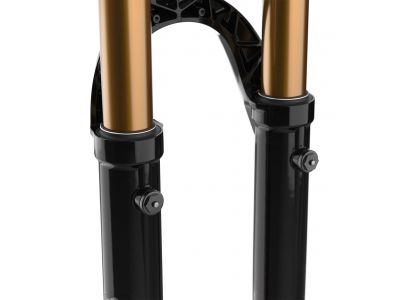

Bleeders: The forks have vent valves at the back of the lower legs that allow you to balance the pressure in the fork legs with atmospheric pressure. Different pressure in the fork reduces the sensitivity of the spring, so you can even out it by pressing the valve with your finger. The pressure in the legs changes mainly at higher temperatures, for example during intensive use on long descents or at high altitudes.
Lower Leg Channels: New air-oil ducts allow the accumulated air in the lower legs to pass through the sliding bushes. The second function of the channels is to allow the oil from the lower feet to reach up to the upper seals (seals) and keep them freshly lubricated.
Floating Axle: The new axle system prevents the parallelism of the fork legs from being affected by the different widths of the front hub. Perfect alignment reduces friction when springing, which is more efficient and smoother. You can adjust the mechanism on the right fork leg exactly to your hub width, and squeezing your feet is eliminated when pulling the axle.
Lower Leg Arch: The bridge between the lower legs has a new rounded shape, which increased the rigidity of the fork and at the same time created more space between the bridge and the bicycle frame when the fork is fully compressed.
| product ID | 173334 |
